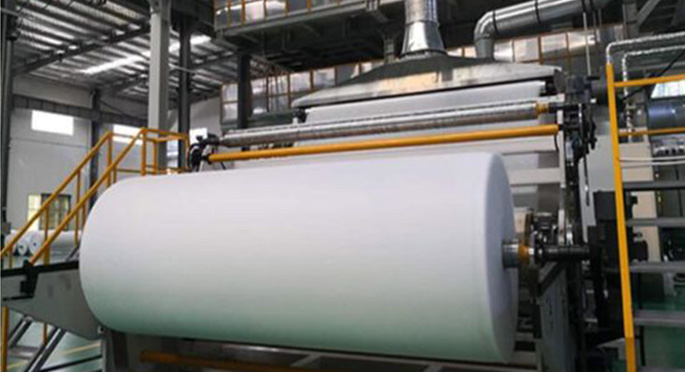

PP meltblown non-woven fabric production line

Dimension(L*W*H):
10.7m*1.8m*3.5m
Voltage:
380V 50HZ
Drive power:
55KW

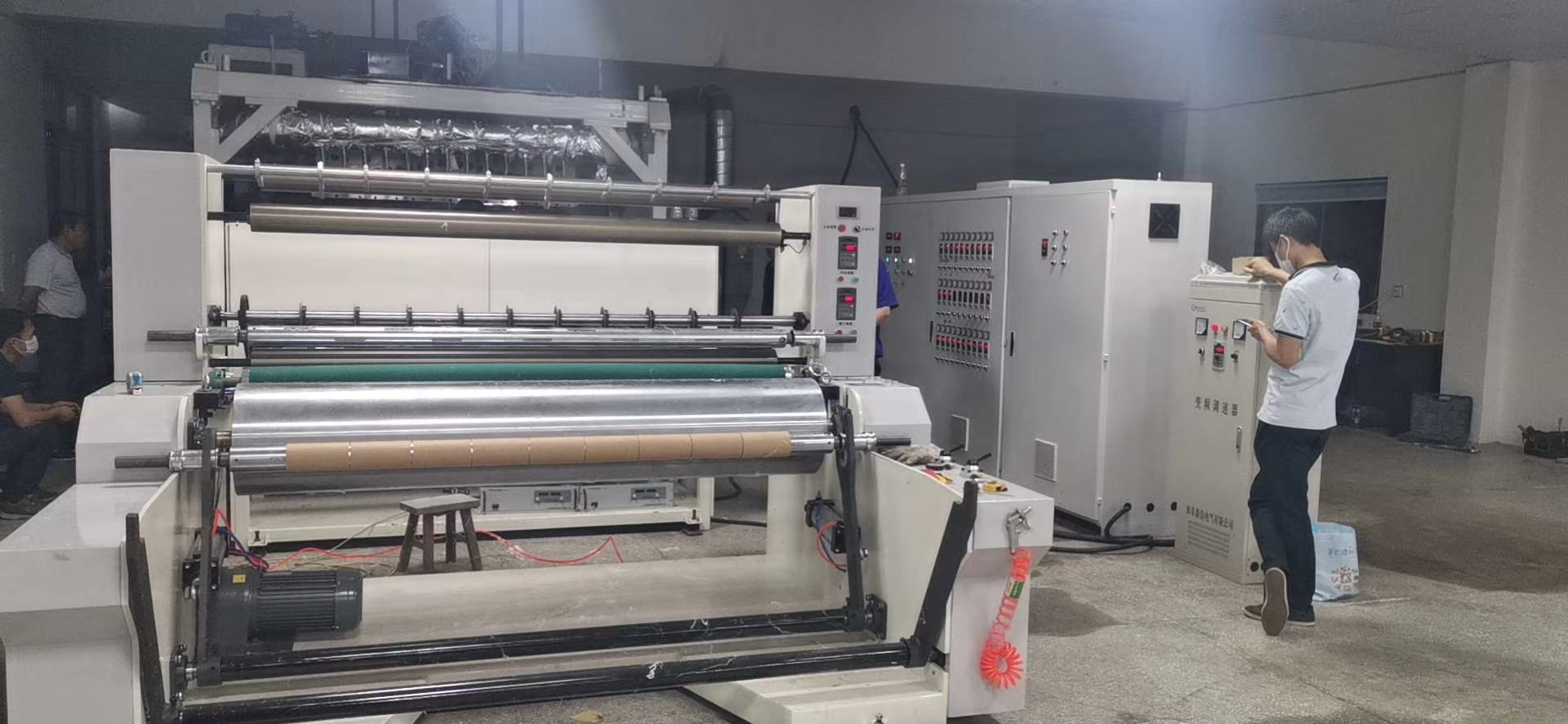

PP meltblown non-woven fabric production line
Product description
Technical Parameters
Product description
The PP melt blown nonwoven production line is a polymer melt extruded from a screw extruder. The polymer is extremely stretched by high-speed hot air or other means to form very fine short fibers, which are aggregated to A web is formed on a roller or a screen curtain, and is finally reinforced by self-adhesion or thermal bonding. Its unique properties are widely used in mask filter materials, thermal insulation filling materials, medical health materials, wiping materials, etc. The finished product can pass the N95 standard as the core material of the mask

Application range:
(1) Medical and sanitary cloths: protective clothing, sterilization wraps, masks, diapers, women's sanitary napkins, etc ;
(2) Home decoration cloth: wall covering, table cloth, bed sheet, bed cover, etc
(3) Follow-up cloth: lining,adhesive lining, flake, shaped cotton, various synthetic leather base fabrics, etc
(4) Industrial fabrics: filter materials,insulating materials, cement packaging bags, geotextiles, covering fabrics, etc
(5) Agricultural cloth: crop protection cloth,seedling raising cloth, irrigation cloth, thermal insulation curtain, etc
(6) Others: space cotton, thermal insulation and sound insulation materials, linoleum, cigarette filter, tea bags, etc.
Technical Parameters

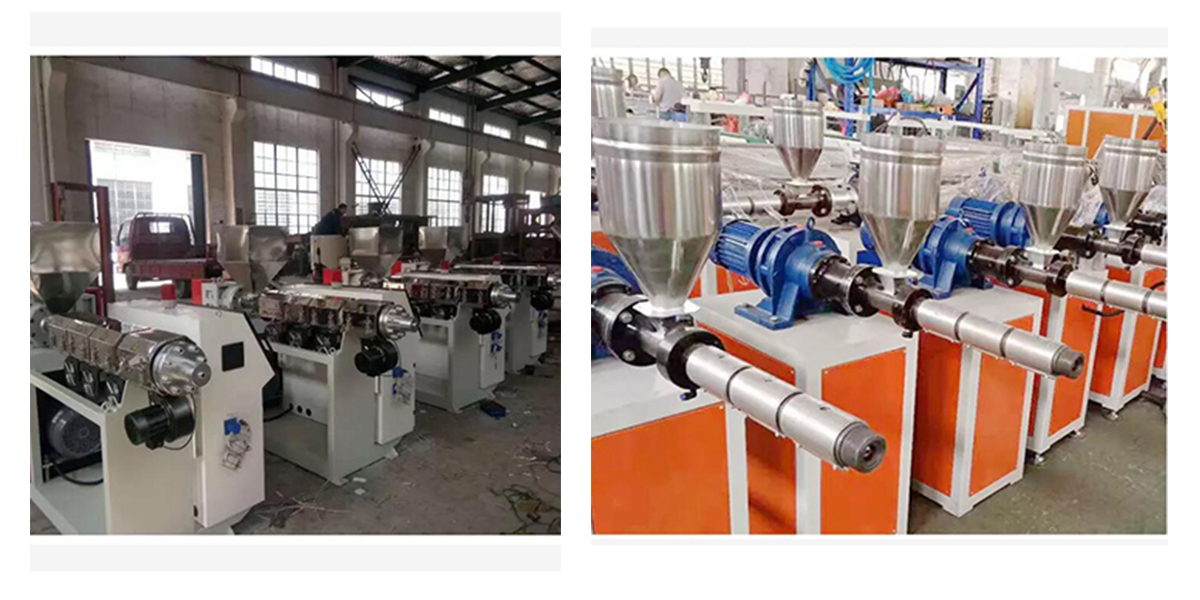

Model Aspect ratio(L/D)

output(kg/h) Screw speed(rpm) Driving power(kW) Center hight(mm)
SJ-25 25/1

2-5 20-120 0.75-2.2 1000
SJ-30 25/1 5-10 20-120 2.2-5.5 1000
SJ-45 25-33/1 50-150 20-150 7.5-30 1000
SJ-65 25-33/1 60-250 20-150 22-90 1000
SJ-75 25-33/1 200-350 20-150 55-110 1100
SJ-90 25-33/1 180-550 20-110 37-185 1000-1100
SJ-120 25-33/1 320-800 20-90 75-280 1000-1250
SJ-150 25-33/1

400-1200 20-75 90-355 1000-1300
Product process
Process of meltblown nonwoven production line
Polymer preparation --- Melt extrusion --- Metering pump --- Meltblown die head assembly --- Solution thin-flow drawing --- Fiber cooling --- Auxiliary network --- Electrostatic electret --- Reinforced finished product
