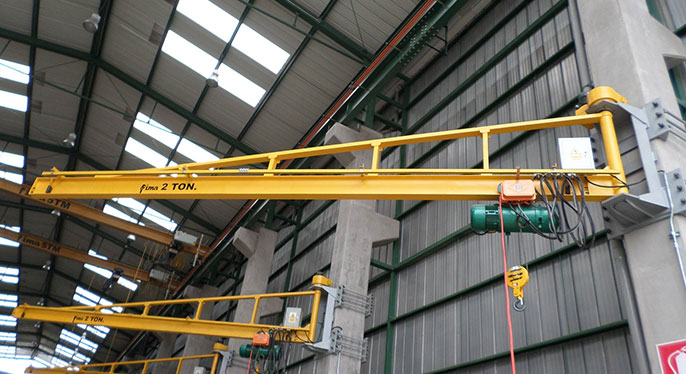

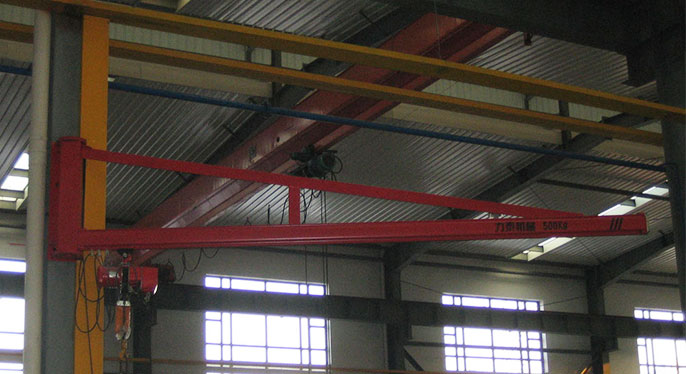

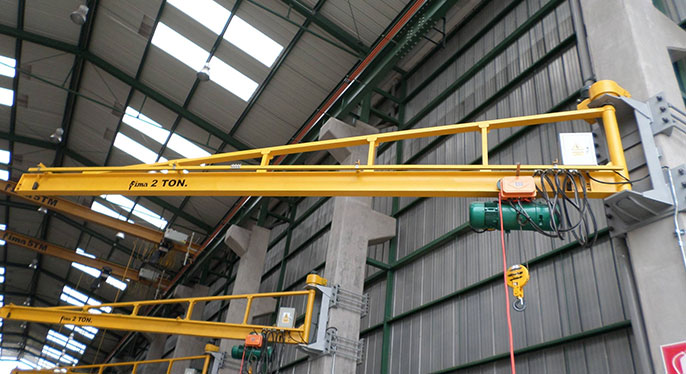

Wall travelling jib crane
Wall travelling jib crane
Wall travelling jib crane
Wall travelling jib crane
Wall travelling jib crane
Wall travelling jib crane

Wall travelling jib crane

The capacity:
0.5-20ton
Lifting speed:
3.5-8m/min
Work class:
A3
Wall traveling jib crane is a kind of new material lifting equipment based on general jib crane. The running track of column mounted jib crane is installed on the column of factory, and it can moves along the track to undergo vertical lifting works. In addition, the electric hoist can realize horizontal and vertical movement along the cantilever. Wall traveling jib crane can greatly expands the operation range and improve space utilization rate, which has been used in factories, workshop production line, assembly lien, machine tool, warehouse, wharf and so on.
Product description
Technical Parameters
Company strength
Product description
Wall traveling jib crane is a kind of new material lifting equipment based on general jib crane. The running track of column mounted jib crane is installed on the column of factory, and it can moves along the track to undergo vertical lifting works. In addition, the electric hoist can realize horizontal and vertical movement along the cantilever. Wall traveling jib crane can greatly expands the operation range and improve space utilization rate, which has been used in factories, workshop production line, assembly lien, machine tool, warehouse, wharf and so on.

Wall traveling jib crane is an ideal lifting device, which has flexible movement, high stability and easy operation, which often consists of the hoist, running tracks, electric part and control system. Wall traveling jib crane is suitable for short or long distance material transferring, which is a necessary lifting machinery of steel plant or production lines so as to reduce the labors working intensity and improve the productivity.
Technical Parameters
ITEM Specifications
Capacity t 0.5 1 2 3 5 10 16 20
Arm length m 1.2~20
Lifting height m 1~15
Lifting speed m/min 3.5 / 7 / 8
Travelling speed m/min 20 / 30
Rotate speed r/min 0.7
Rotate angle degree   180°
Wire rope mm Ø4.7 Ø7.7 Ø11 Ø13 Ø15.5 Ø15.5 Ø17.5 Ø22.5
Power source 3-phase, 380v50Hz OR as required
