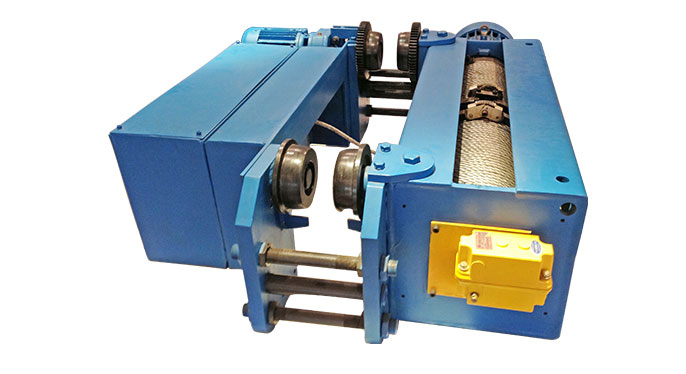

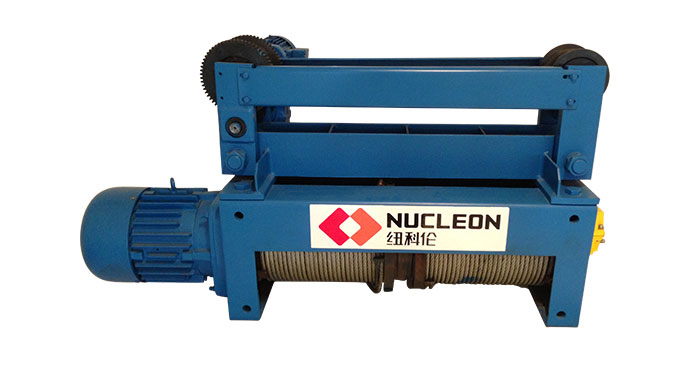

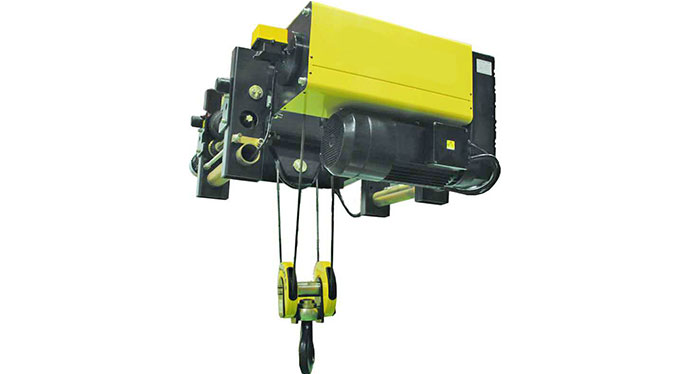

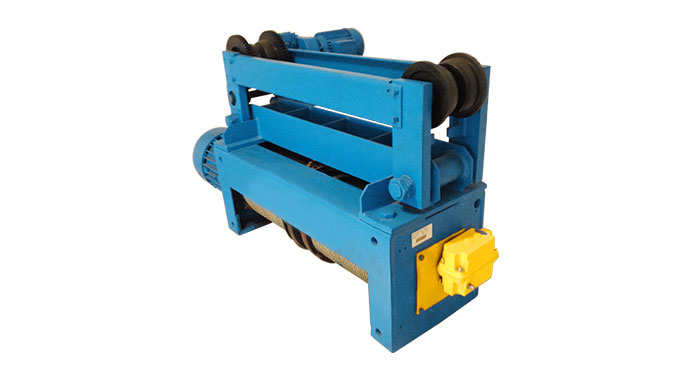

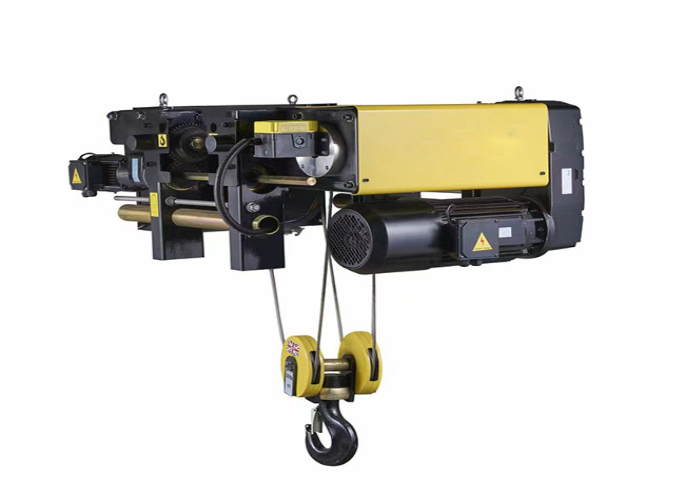

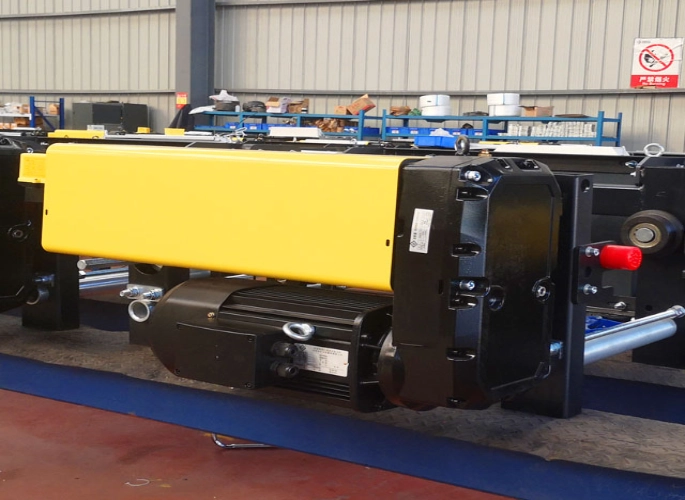

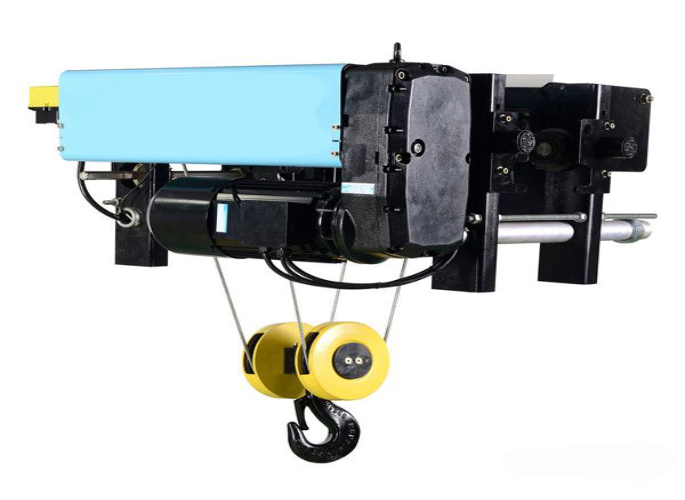

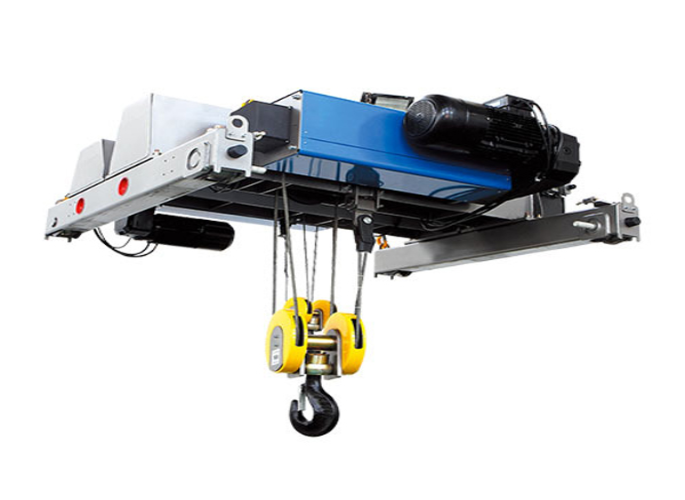

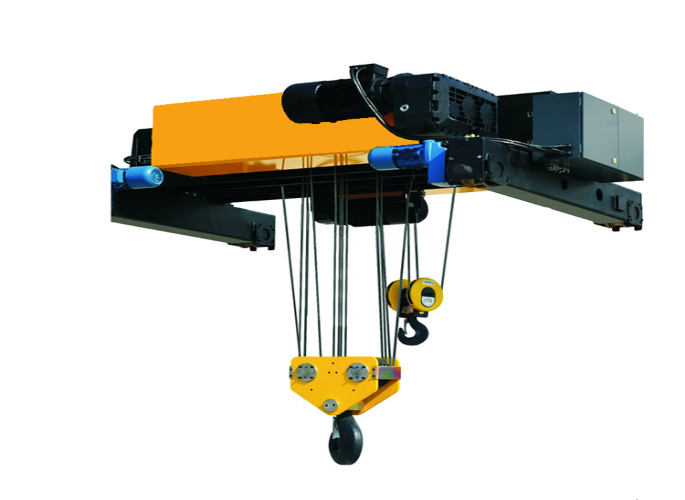

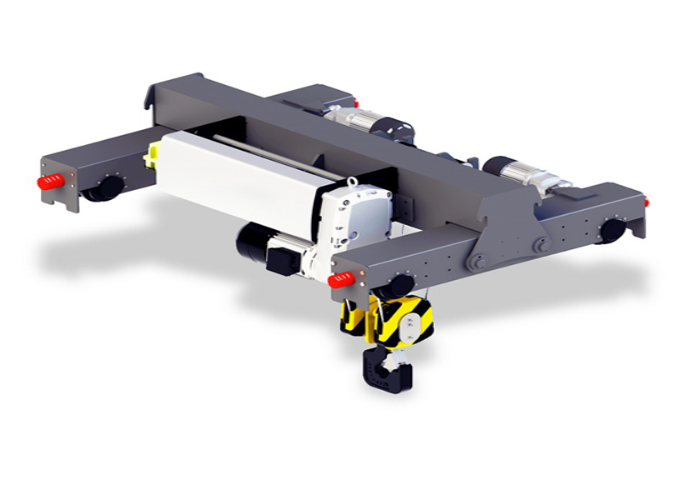

Europe type hoist

The capacity:
1000-12500KG
Lifting height:
6-18m
Working grade :
M4-M7
It widely used in lifting heavy weights or installed on a single beam crane, linear, curve strander beams. It can also be used to the hoist double beam, gourd gantry crane or cantilever crane
Product description
Technical Parameters
Company Introduction
Product description
It widely used in lifting heavy weights or installed on a single beam crane, linear, curve strander beams.
It can also be used to the hoist double beam, gourd gantry crane or cantilever crane
It is a light equipment for lifting,which is welcomed by Industrial and mining enterprises, railways, docks, warehouses.

Protect Function:

It is matched with brennschluss stopper, insure the hoist moving safety, long working life and reliable. And also it have head punch protection device.

Advantage:

1.Compact structure, light and safe,big lift capacity, easy to maintain .
2.Efficient high lifting speed, smooth low lifting speed, precise positioning ;
3.Humanization design of control pendant.
4.Novel design , good-looking appearance.

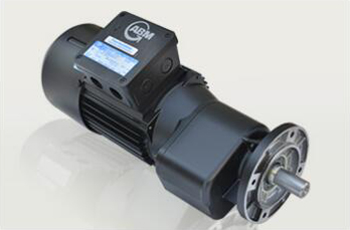

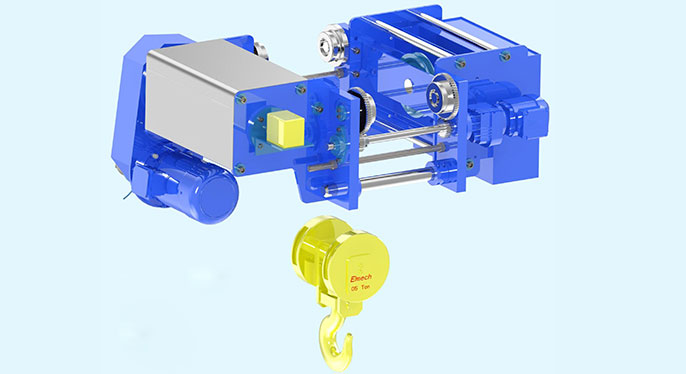

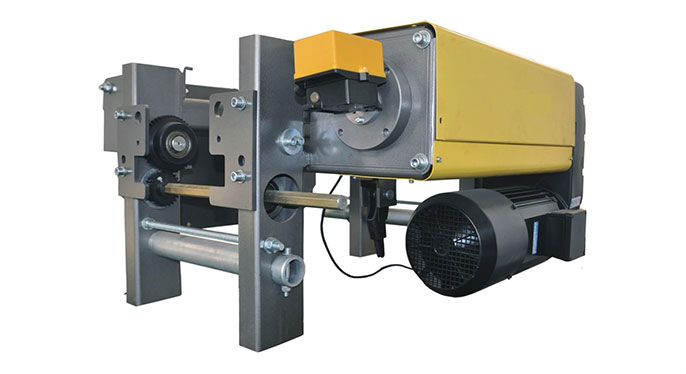

Travelling system
Integrated design of gearbox,motor and brake,compact structure,stable operation,high efficiency and small impact.
Travelling system

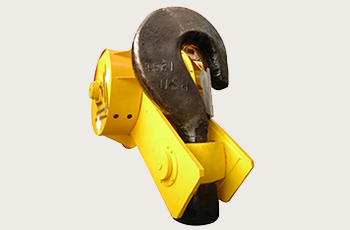

Hook assembly Hook assembly
"C" Type Forged Hook DIN standard hook with safety buckle and wire rope sheath.

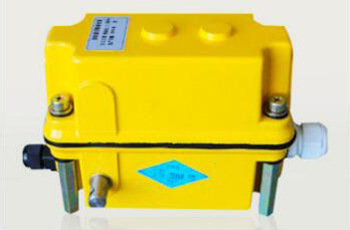

Height limiter
Freely adjustable screw lifting height limiter with high precision and wide adjustment range,Multi-touch configuration can effectively achieve the switching among fast,slow and stopping functions during rising and falling.
Height limiter

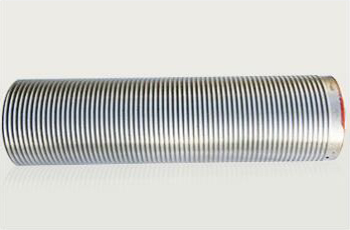

Drum Drum
The material is Q345 seamless steel tube.The advanced machining ensures the drum concentricity. The depth of rope groove conforms to FEM.

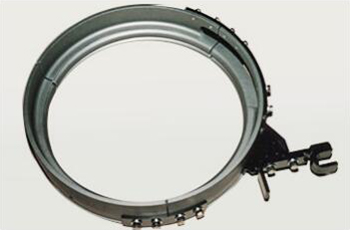

Rope Guide
Made of engineering plastic nylon, light weight,excellent wear resistance,reducing the wear to the wire rope.
Rope Guide

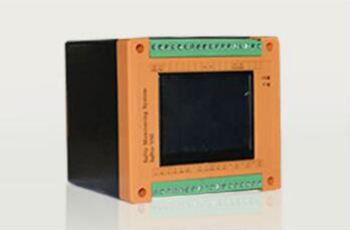

Safety monitor Safety monitor
FINEWORK star intelligent monitoring system is safe and practical with friendly man-machine interface and simple operation.



Technical Parameters
Item Unit Result
Lifting capacity kg 1000-12500
Lifting Height m 6-18
Lifting Speed m/min 0.6/4-1.6/10
Trolley Speed m/min 2-20
H mm 245-296
C mm 385-792
Working Class FEM 1Am-4m
Working Class ISO/GB M4-M7
