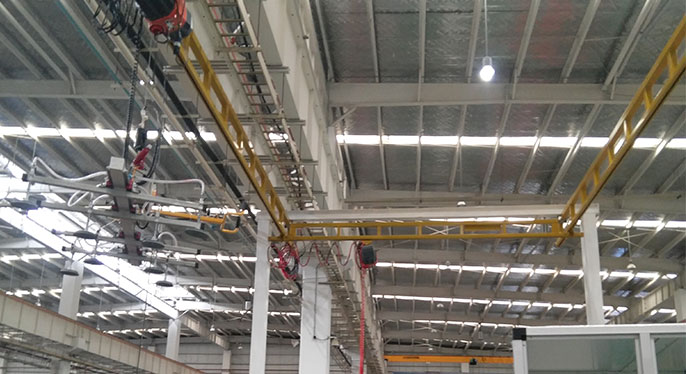

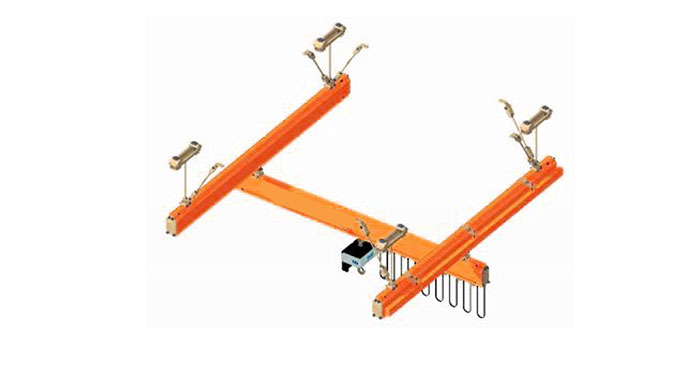

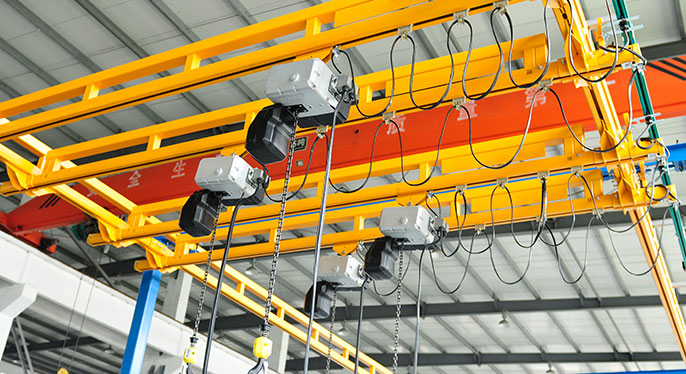

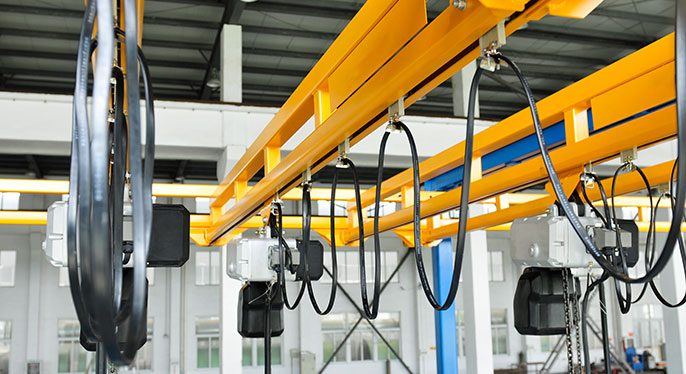

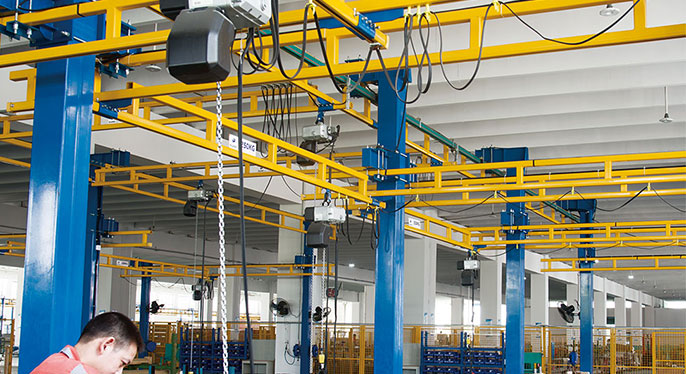

Single girder KBK crane
Single girder KBK crane
Single girder KBK crane
Single girder KBK crane
Single girder KBK crane
Single girder KBK crane
Single girder KBK crane
Single girder KBK crane
Single girder KBK crane
Single girder KBK crane

Single girder KBK crane

The capacity:
0.1-5t
Lifting height:
1-20m
Temperature:
-20℃ ~ +60 ℃
single girder kbk overhead crane applicable to general workshop,warehouse and working-place where need moving goods low of 3.2t,request environment temperature is -20℃ ~ +60 ℃.
Product description
Technical Parameters
Company strength
Product description
single girder kbk overhead crane applicable to general workshop,warehouse and working-place where need moving goods low of 3.2t,request environment temperature is -20℃ ~ +60 ℃.
The altitude of the KBK system installation location should be no more than 1500m,general work indoors.
When the KBK light crane system working in outdoors,in the environment with corrrosive gas and liquid,and teh temperature outside  -20℃ ~ +60 ℃,special protective measures should be taken.
single girder kbk overhead crane uses a modular design to replace the traditional concept of a complete machine design.The basic components of the crane function are made to have multiple uses,with the same connection elements and interchangeable standard modules.According to needs,it can be composed of single-girder suspension cranes,double-girder suspension cranes,cantilever cranes,light gantry cranes,and stacker cranes.It can also form large-scale automated material handling systems with safe lifting ranges from 100kg to 5000kg.Lightweight and flexible modular cranes can be operated manually,as well as automatic and semi-automatic operation.
single girder kbk overhead crane is easy to install and easy to maintain.Each standard module can be used only by bolting.

Related products:

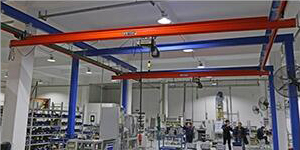

KBK Light modular crane

KBK Light modular crane

Max span:16m

Max capacity:5000kg

KBK Truss type rail crane

Max span:10m

Max capacity:2000kg

KBK Truss type rail crane
New type KBK Light modular crane

New type KBK Light modular crane

Max span:8m

Max capacity:2000kg

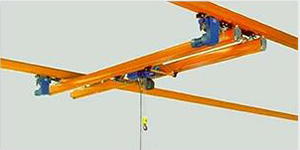

KBK double girder crane

Max span:32m

Max capacity:8000kg

KBK double girder crane

Crane parts:

columm of single girder kbk crane crane traveling rail of single girder kbk crane single girder crane with hoist of single girder kbk crane crane traveling system of single girder kbk crane

Column

crane traveling rail

single girder crane with hoist

crane traveling system

crane trolley of single girder kbk crane hanging device of single girder kbk crane Cable clamp of single girder kbk crane KBK EURO type hoist of single girder kbk crane

crane trolley

hanging device

Cable clamp

KBK EURO type hoist

Technical Parameters
Item Unit Specifaction
Lifting capacity t 0.1-5
Span m 3-12
Lifting height m 1-20
Type of track   124a-136c
Type of natched crab   SDX  -3.WA1 has1
Type of material hoist   HS1/2-HS3
