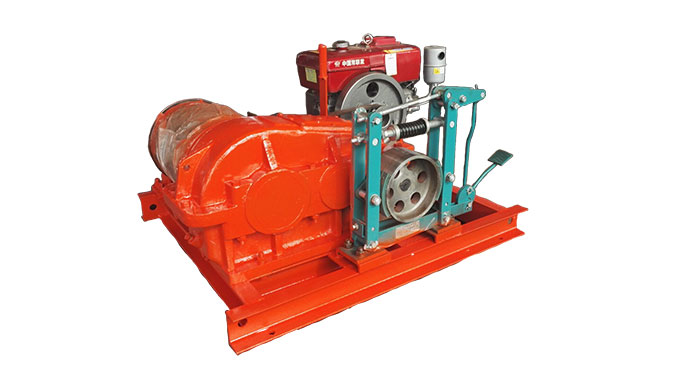

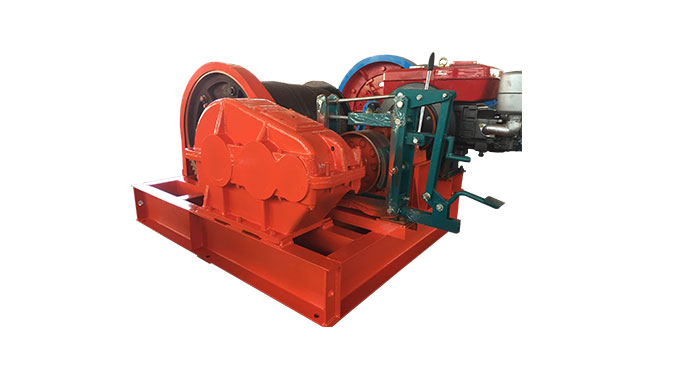

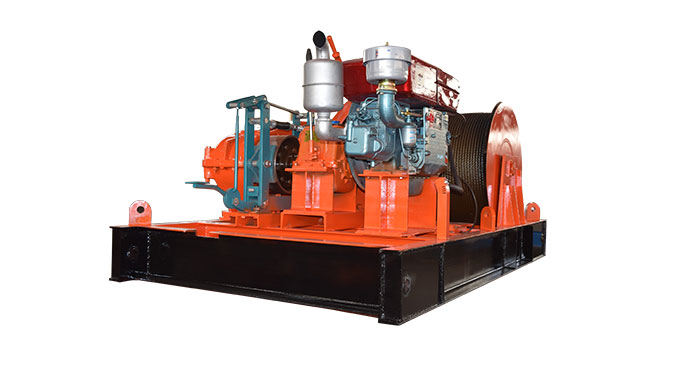

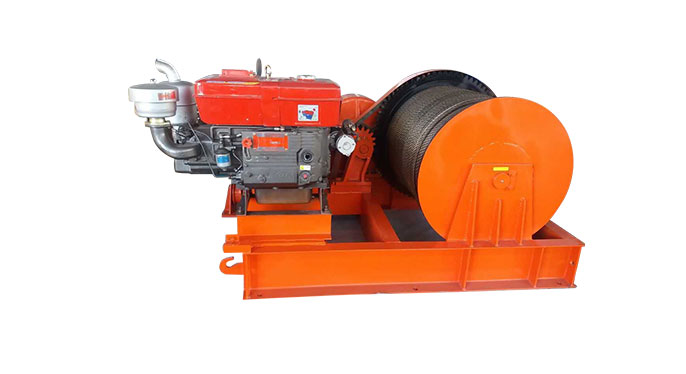

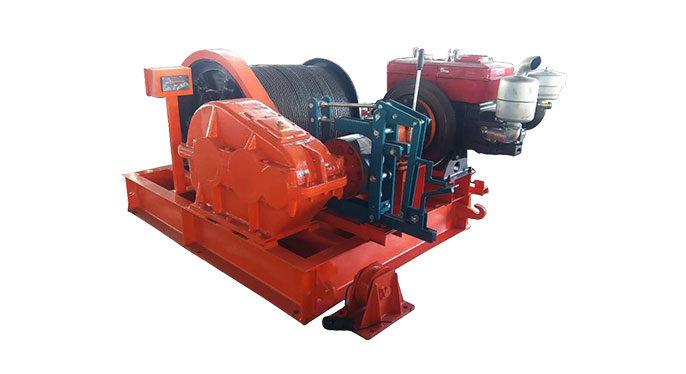

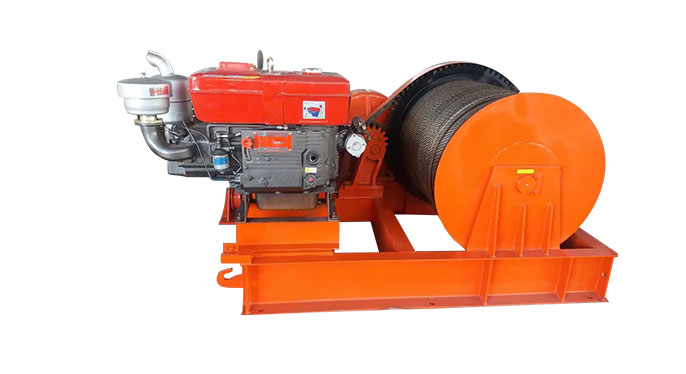

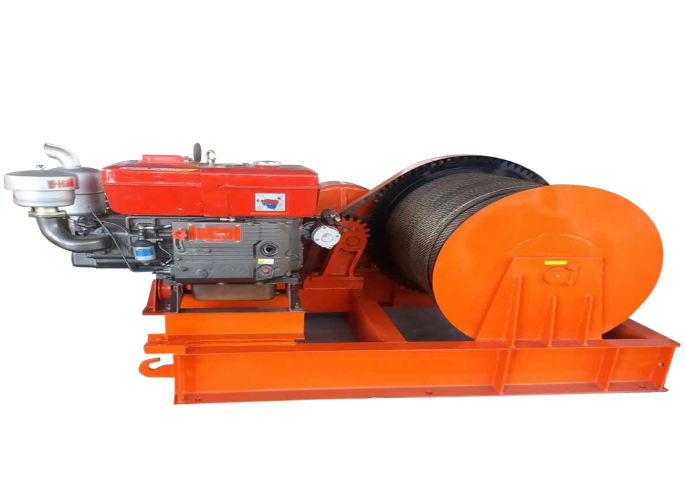

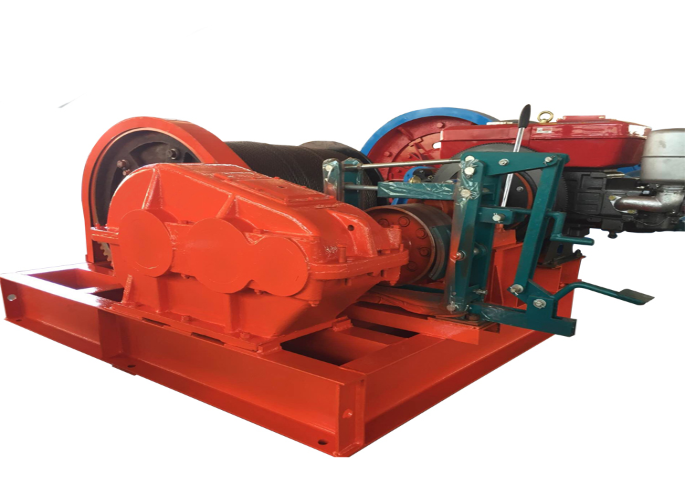

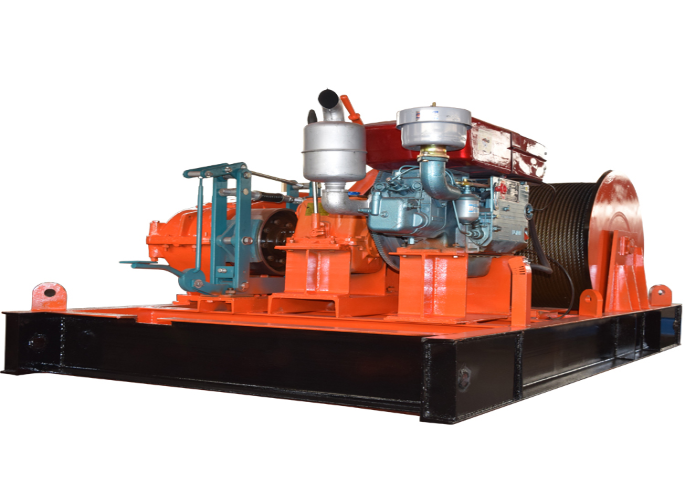

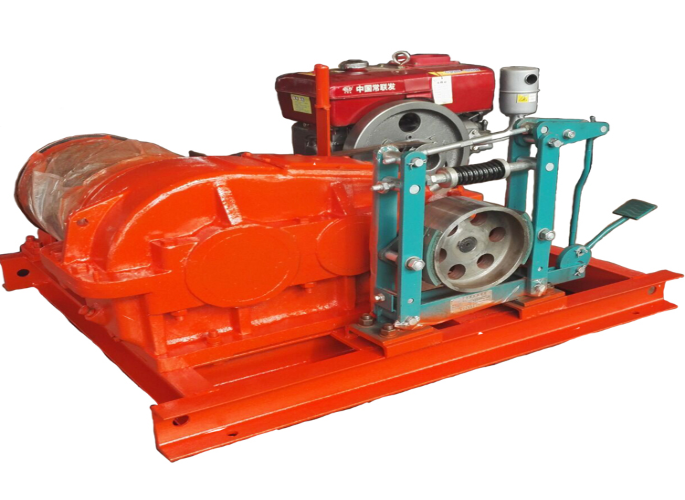

Diesel winch

Rated speed:

8-10m/min

Rope capacity:

250-700kg

Weight:

2800-21000kg

Diesel winches are a common type of engineering machinery, mainly used for material lifting or traction operations in construction, mining, and port facilities. Powered by a diesel engine, they are characterized by their simple structure, strong adaptability, and ease of operation.

Send email Get Quote Now

Product description

Technical Parameters

Company Introduction

Product description

A diesel winch mainly consists of a diesel engine, a reducer, a drum, a braking system, a clutch, and a control mechanism. The diesel engine provides power, which is transmitted to the drum through the reducer, driving the wire rope to complete lifting or traction operations. The braking system is used to control the drum's stop or maintain the load, while the clutch is used to connect and disconnect power.

	Reducer 1.type:250,350,400,500,650,750,850,1000 2.ratio:8.23-317.28
crane motor 1.YZR,YZP are all provided 2.power:1.8-280Kw 3.number of pole-pairs:4,6,8,10
	Drum It is grooved hoist drum, seamless pipe of adequate length to be winded in one layer and to provide proper support for the rope to minimize abrasive wear. Drum shaft revolves on ball bearings for ensuring smooth running
limiter Freely adjustable screw lifting height limiter with high precision and wide adjustment range,Multi-touch configuration can effectively achieve the switching among fast,slow and stopping functions during rising and falling
	Brake brake wheel dia: Ø100mm,Ø150mm,Ø200mm,Ø250mm,Ø300mm,Ø400mm,Ø500mm,Ø600mm etc
controller 1.apollo,HBC,WICONTEK,telecrane 2.2/4/6/8/10/12keys for choosing 3.voltage:as required

Technical Parameters

Item	Unit	Specifacation
Capacity	t	1-32
pull	kn	10-320
speed	m/min	8-16
motor power	kw	4HP-70HP
total weight	kg	270-6600
wire rope	diameter	Φ9-Φ46
rope drum	m	80-800

（The above are standard parameters, and customized solutions and designs are provided according to your actual needs.）

Advantages

The trust of more than 1 million enterprises in the world covers dozens of countries such as the United States, Russia, South Korea, Saudi Arabia, The United Arab Emirates, Ukraine, Poland, Vietnam and Indonesia.

Factory inspection

Third party testing

Company Introduction


Integrity and innovation		Quality and service
HY Crane always adhere to the concept of integrity and innovation. Integrity makes the company lay a solid foundation and earn good reputation. Innovation is the inspiration that drives us to develop better and be a world class company.		HY Crane owns its own technology and expertised engineer with abundant experience. We are also equipped with advanced automated machines to improve the quality of our product. Quality and service is always our core competence.

Five years warranty

Free distribution of wearing parts

Provide assemble videos before shipment

Techincal support and field installation
