A material handling gantry crane is used to lift and move heavy materials in areas where an overhead crane is not practical or where an independent supporting structure is preferred. It is commonly found in steel yards, factories, warehouses, construction sites, shipyards, and outdoor storage areas.
Unlike an overhead crane, a gantry crane has its own legs and can operate without being suspended from the building structure. This makes it a practical option for many outdoor and open-area material handling applications.
A material handling gantry crane consists mainly of a bridge girder, supporting legs, end carriages, hoisting mechanism, and electrical control system.
The hoist moves horizontally along the bridge, while the entire crane can travel along the ground or rails. This allows materials to be lifted and moved across a defined working area.
Depending on the application, gantry cranes can be designed as:
The right configuration depends on the load, span, lifting height, and working environment..png)
Steel plates, pipes, beams, coils, and fabricated structures are often too heavy for conventional forklifts. A gantry crane can cover a large storage area and move materials between trucks, storage positions, and processing equipment.
A gantry crane can be used for moving machinery, molds, components, castings, and finished products. It is especially useful when the building does not have a suitable runway structure for an overhead crane.
Construction projects often require lifting steel structures, concrete components, pipes, and heavy equipment. A gantry crane can provide lifting coverage where permanent crane infrastructure is not available.
For heavy-duty warehouses, gantry cranes can handle materials in loading areas and outdoor storage yards. Their independent structure also makes them suitable for facilities with limited building support.
Large components, steel sections, engines, and other marine equipment may require high-capacity lifting. Double-girder gantry cranes are commonly considered for these demanding applications.

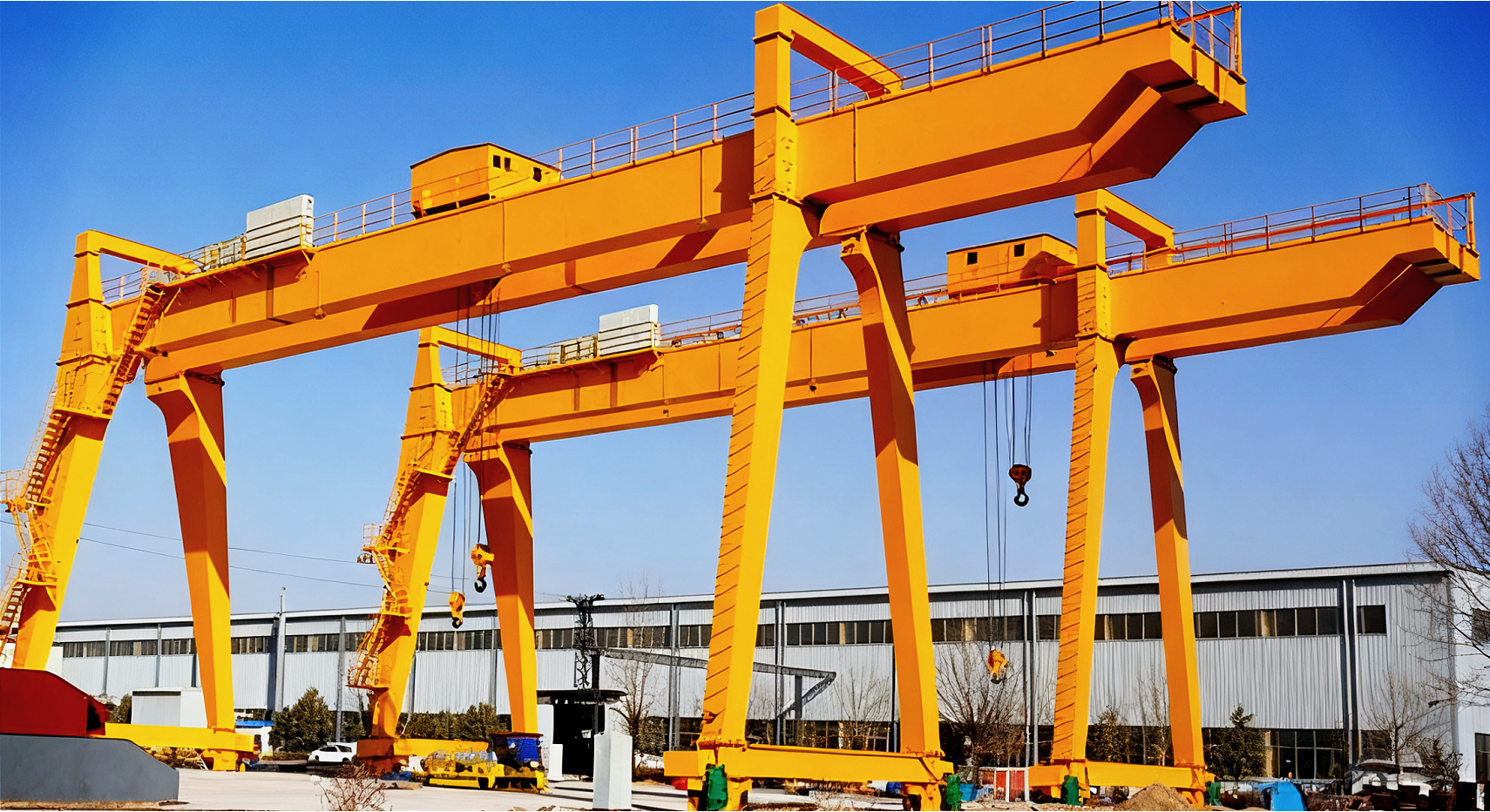

The two main configurations are single-girder and double-girder gantry cranes.
| Feature | Single Girder | Double Girder |
|---|---|---|
| Typical capacity | Light to medium | Medium to heavy |
| Structure | Simpler | More robust |
| Span | Suitable for many standard applications | Suitable for larger spans |
| Lifting height | Standard applications | Can accommodate higher lifts |
| Cost | Generally lower | Generally higher |
| Typical use | General material handling | Heavy-duty industrial handling |
The choice should not be based on capacity alone. Span, working class, lifting height, and operating frequency also affect the final design.
Before ordering a gantry crane, several technical details should be clearly defined.
Determine the maximum load that needs to be lifted. Consider not only the material but also lifting beams, spreaders, clamps, and other accessories where applicable.
The crane span should cover the required working area without making the structure unnecessarily large.
Measure the required hook height and check the clearance above trucks, stored materials, buildings, and other obstacles.
For rail-mounted gantry cranes, the travel distance determines the required runway length. For mobile designs, the floor condition and travel route also need to be considered.
A crane used a few times a day has different requirements from one operating continuously throughout multiple shifts. Working class should therefore be considered during selection.
Outdoor gantry cranes may be exposed to rain, wind, dust, temperature changes, and corrosion. These conditions should be included in the crane design.
Safe material handling depends on both crane design and operating procedures.
Important practices include:
Do not exceed the rated lifting capacity.
Inspect hooks, wire ropes, brakes, and limit switches regularly.
Use lifting accessories suitable for the load.
Keep people away from suspended loads.
Check load balance before lifting.
Maintain clear travel paths.
Consider wind protection for outdoor cranes.
For outdoor installations, the foundation, rail alignment, anchoring, and wind-related requirements should also be considered.
The price of a material handling gantry crane depends on its complete configuration rather than capacity alone.
Key factors include:
Lifting capacity
Crane span
Lifting height
Travel length
Hoist type
Working class
Control system
Power supply
Outdoor or indoor operation
Safety and optional equipment
A detailed technical inquiry usually provides a more useful quotation than simply asking for a price for a “20-ton gantry crane.”
HY Crane provides gantry crane solutions for factories, warehouses, construction sites, steel yards, and other material handling applications.
The crane can be configured according to the required lifting capacity, span, lifting height, travel distance, working frequency, and site conditions.
When requesting a quotation, customers can provide the basic load information together with a site drawing or photos of the working area. This helps determine the appropriate gantry crane structure and lifting system.
A material handling gantry crane can be a practical solution for moving heavy materials in open yards, factories, warehouses, and construction areas.
Single-girder cranes are suitable for many general lifting applications, while double-girder designs are better suited to larger loads, wider spans, and demanding working conditions.
The most important step is to select the crane according to the actual material handling process rather than choosing a standard model based only on lifting capacity.
What is a material handling gantry crane?
It is a crane with its own supporting legs, designed to lift and move materials within a defined working area.
Can a gantry crane be used outdoors?
Yes. Gantry cranes are widely used in outdoor steel yards, construction sites, storage areas, and logistics facilities.
What is the difference between a gantry crane and an overhead crane?
An overhead crane normally runs on a building-supported runway, while a gantry crane has its own supporting legs and can operate independently of the building structure.
How do I choose the right gantry crane?
Consider lifting capacity, span, lifting height, travel distance, working frequency, load type, and site conditions before selecting the crane configuration.
